HydraMax Home Chiller Upgrade Kit STD

Description

This kit includes all components required to connect a chiller to your 1- or 2-Bucket Home Set.

While a chiller can also be integrated directly into the existing 3/8″ Venturi supply line, this configuration may restrict water flow. The Chiller Connection Kit is designed to maximize circulation by creating a direct, high-flow connection from the pump to the chiller using a 3/4″ hose. Only after passing through the chiller is the hose diameter reduced to 3/8″ for connection to the Venturi supply line.

This optimized flow path improves chiller performance and water flow and helps ensure efficient cooling and flow pressure throughout the system.

Key Benefits

• Includes all parts required for chiller integration
• Maximizes water flow through the chiller
• Direct 3/4″ connection from pump to chiller for improved efficiency
• Reduced flow restriction compared to direct integration into the 3/8″ supply line
• Compatible with 1- and 2-Bucket Home Sets

Important:
Please ensure that you have the correct adapter to connect the kit’s 3/4″ NPT threaded fitting to your specific chiller. Since connection standards vary between chiller models and manufacturers, the required adapter is not included.

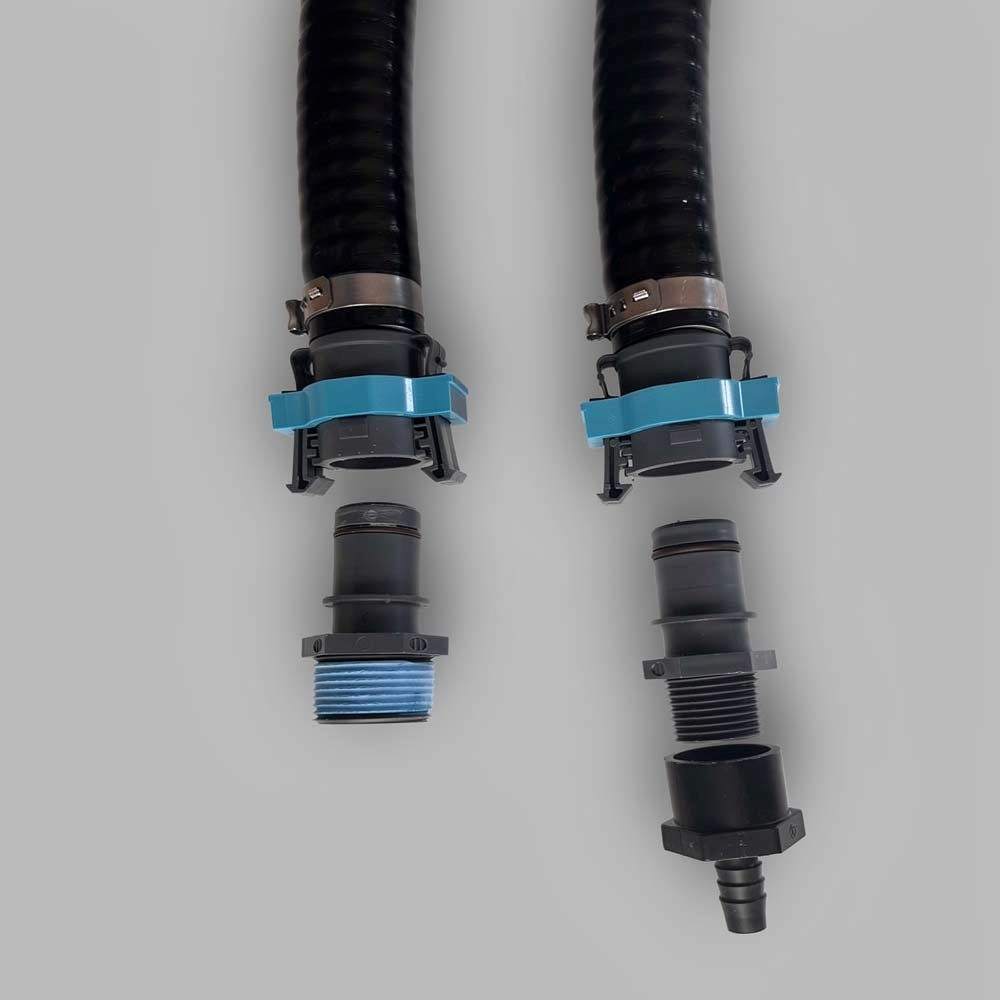

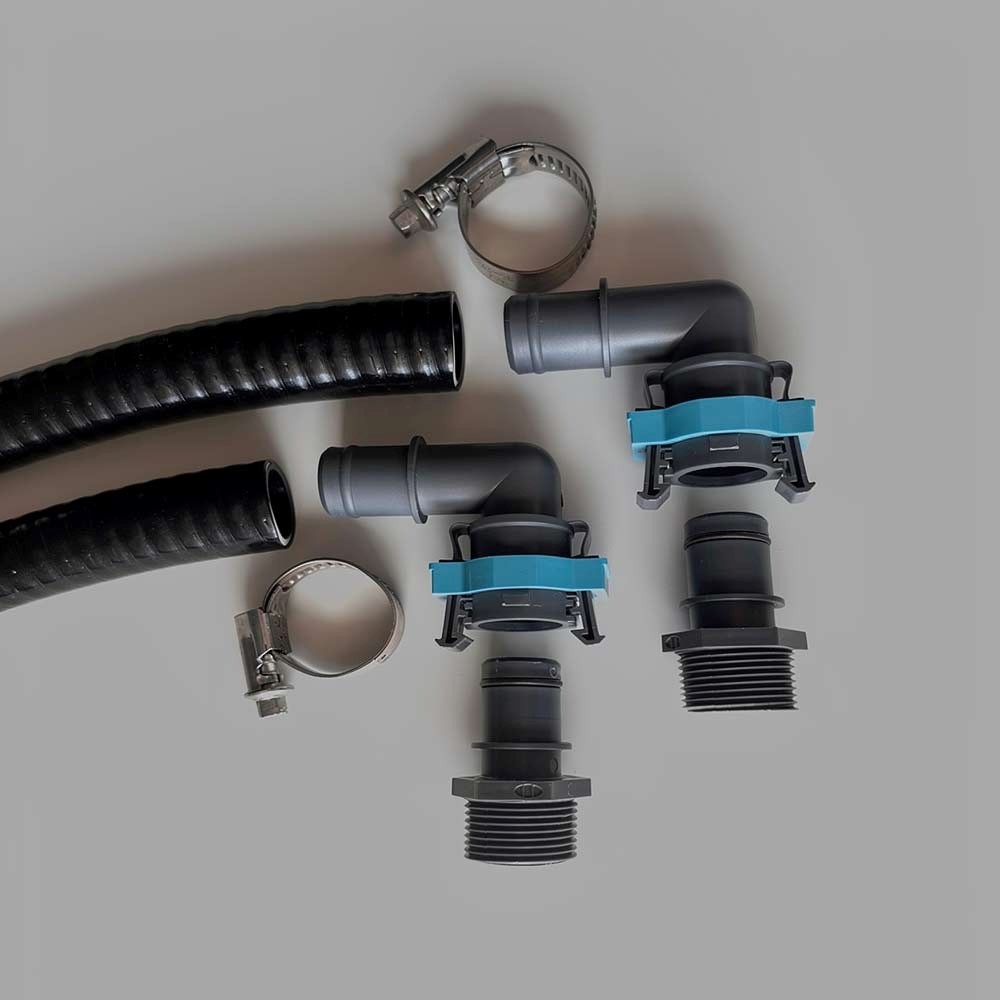

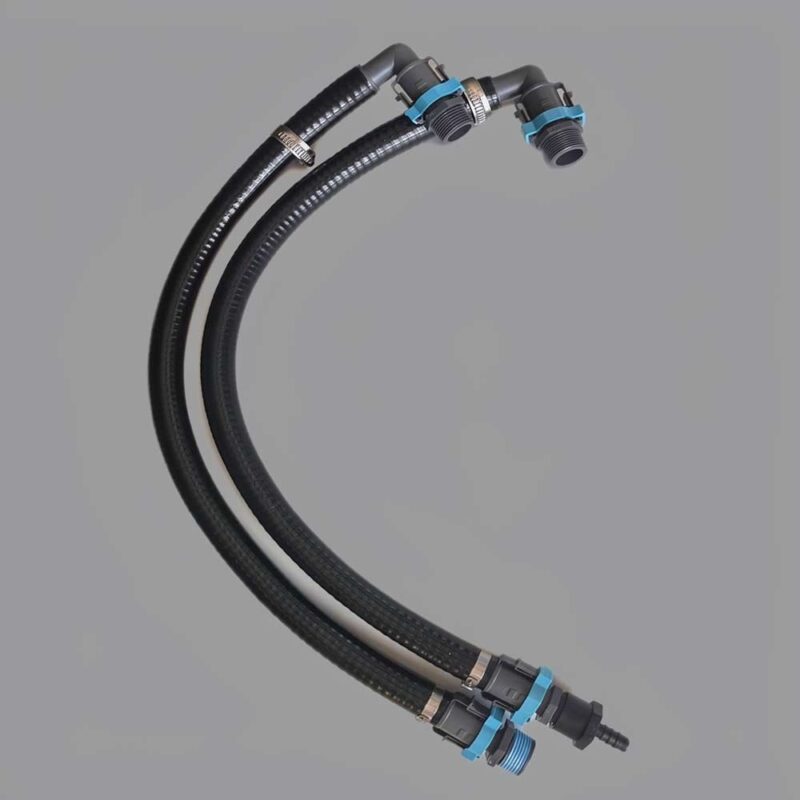

Included in this Kit:

• 2 x HA-H06SN-032, Hydra Qwik Lok Harness, 3/4″, Straight x none, 80cm long
• 3 x HA-024, Hydra Adapter, 3/4″ QL x 3/4″ Male NPT, grahite
• 1 x HD-00028, Hydra Adapter, Male 3/8″ BARB x FEMALE 1/2″
• 1 x HA-027, Hydra Adapter, MALE 3/4″ QL x MALE 1/2″ NPT
• 2 x HA-009, H<dra 3/4″ QL Socket Elbow
• 2 x MD-00319, Worm Clamp, 3/4″
