If you’re running a Hydra HOME system, you’ll know its strengths: compact, efficient and stripped back to the essentials. With 1 to 4 buckets, 3/4″ tubing and a smaller high-performance pump than the PRO range, these systems are ideal for growers who want a manageable but still powerful setup for home cultivation.
As the pump circulates the nutrient solution, the Venturi circulator draws in air and turns it into ultra-fine oxygen bubbles. These travel straight to the roots along with the nutrient solution, delivering the oxygen supply that’s the foundation of strong root growth and efficient nutrient uptake.
It’s precisely because the Hydra system runs so efficiently that unobstructed flow matters so much. Over time, though, fine root fibres, dirt particles or other debris can build up in the water circuit and partially block the Venturi circulator. Even small deposits are enough to restrict flow, and in the worst case, that can lead to the system overflowing.
The fix: an inline pre-filter
The fix is simple. A filter only comes fitted as standard on the PRO systems, but there’s an equally effective and affordable option for Hydra HOME. We’d recommend fitting an inline pre-filter directly upstream of the Venturi circulator. It reliably catches root fibres and dirt particles, keeps flow consistent, and cuts the risk of malfunctions or overflows down to a minimum.
The one we point growers towards is a 5-inch inline pre-filter with a 3/4″ internal thread, rated to 8 bar and 3,000 l/h flow, with a 0.06 mm mesh. That’s comfortably more capacity than a HOME system’s pump will ever push through it, so it won’t become the bottleneck itself, it’ll just quietly do its job.
What else you’ll need
Because this filter isn’t a Hydra part, it comes with a 3/4″ threaded connection rather than the Qwik-Lok fittings your HOME system’s tubing runs on. To bridge the two, you’ll need:
- 2 x Qwik-Lok Adapter HA-024 (available here), one for each side of the filter
- 1 x Qwik-Lok Short Hose HA-H06SS-006 (available here), to complete the connection run

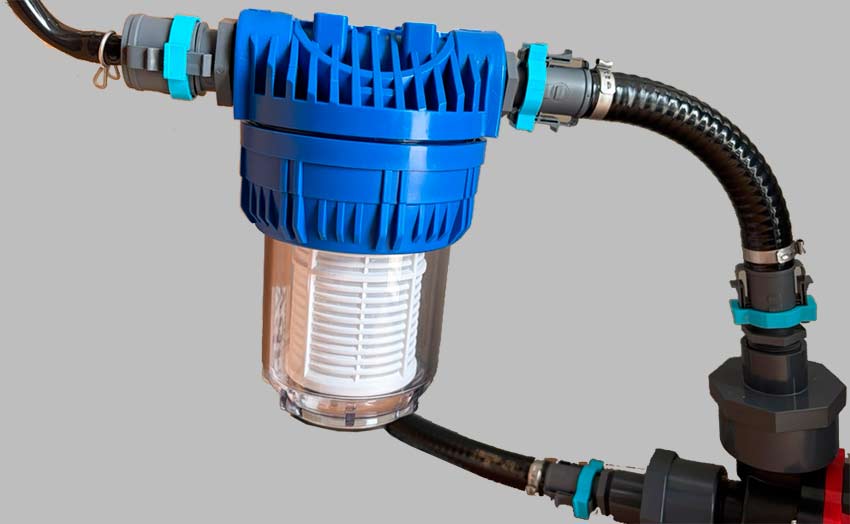

With the adapters threaded onto either side of the filter and the short hose bridging the gap where needed, you get a clean transition from your existing Qwik-Lok tubing to the filter’s fittings and back again, no cutting, no improvising, no leaks. The photo above shows a finished setup: filter housing centred, adapters at each end, and the original HOME tubing running in and out either side.
Where in the system should the filter go?
Fit the inline filter on the discharge side of the pump, so between the pump and the Venturi circulator, or on a 2- or 4-bucket HOME system, upstream of the manifold that feeds the Venturi circulators. If a chiller is part of the system, fit the filter downstream of the chiller and directly upstream of the Venturi circulators. That way, freshly filtered nutrient solution always reaches the Venturi circulators, and unobstructed flow stays guaranteed.
The clear housing also means you can see at a glance when the filter needs a clean, no guesswork, no waiting for problems to show up. Depending on where it’s installed, unwanted light exposure is easy to prevent too: just wrap the clear filter housing in aluminium foil or another light-blocking cover if needed.
Where to get it
The filter itself isn’t something we stock, so you’ll find it on Amazon, for instance: VARIOSAN inline pre-filter. Pick that up alongside the Qwik-Lok parts linked above, and your HOME system’s Venturi circulator will be a lot better protected against debris.
By the way, the inline filter also comes in larger sizes, so it works just as well on Hydra PRO systems. Instead of the HOME adapters, you’ll just need 2 x Qwik-Lok Adapter HA-029 (available here) to fit the filter into a PRO system with 1 1/8″ connections.
