Beschreibung
Square irrigation trays / flood table shelves
In-house irrigation tub or flood table with a deeper drain basin. Perfect drainage thanks to diagonal drain grooves and a deeper drain bead.
Perfectly coordinated with our growRACK articles and suitable for all square grow tents with the following sizes of footprint:

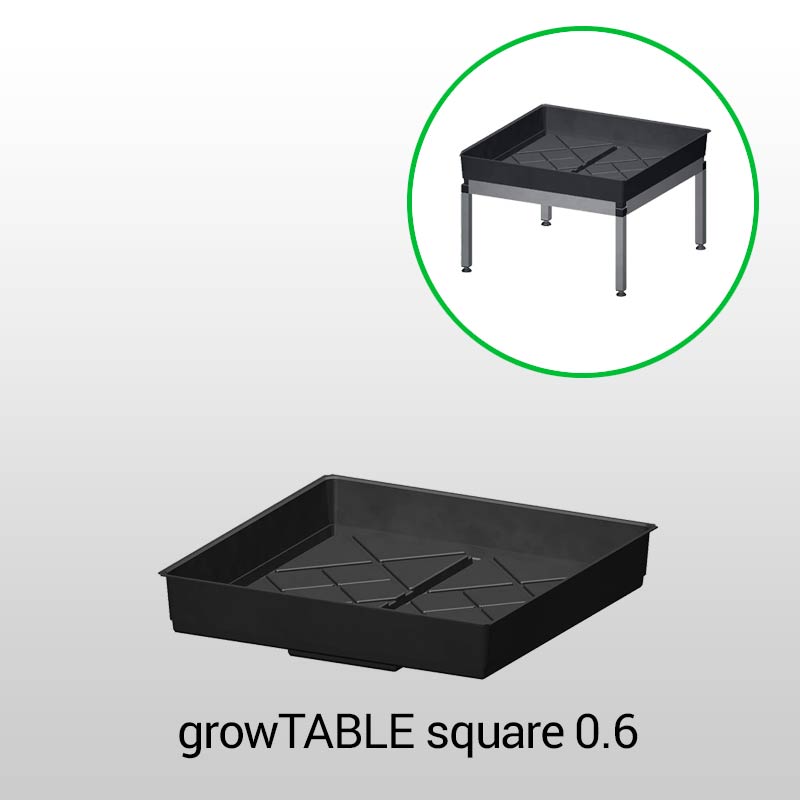

- growTABLE square 0.6 (57 x 57 x 9 cm + 4 cm deep drain basin): Grow tent footprint of at least 60 x 60 cm

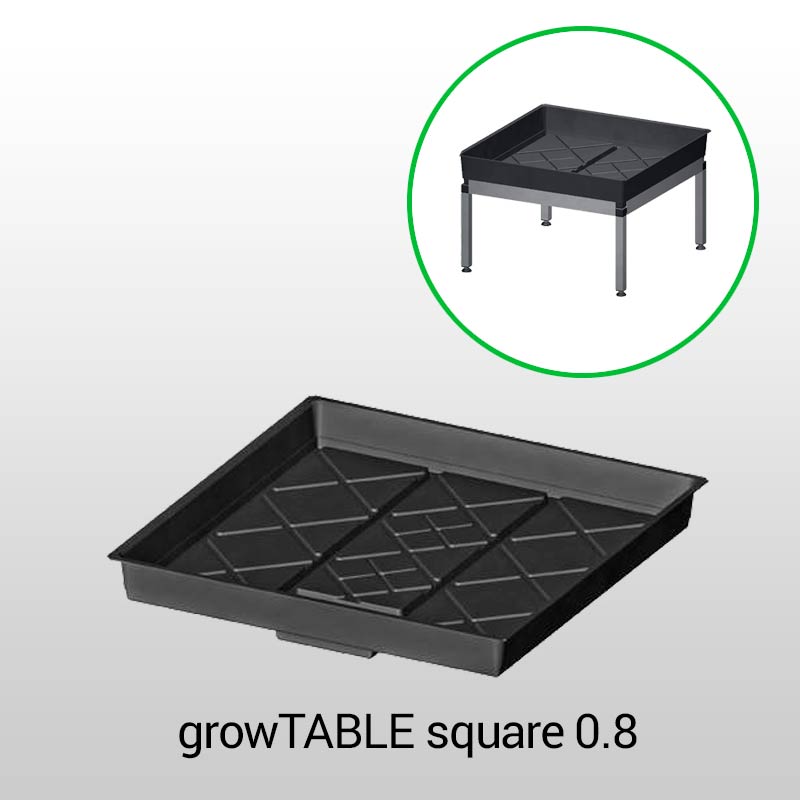

- growTABLE square 0.8 (78 x 78 x 9 cm + 4 cm deep drain basin): Grow tent footprint of at least 80 x 80 cm

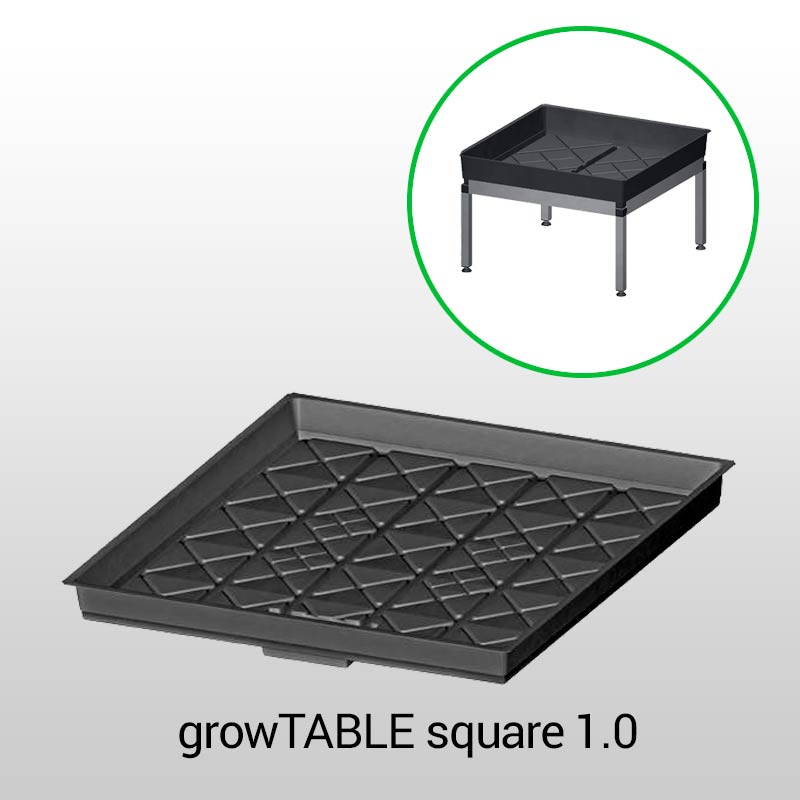

- growTABLE square 1.0 (98 x 98 x 9 cm + 4 cm deep drain basin): Grow tent footprint of at least 100 x 100 cm

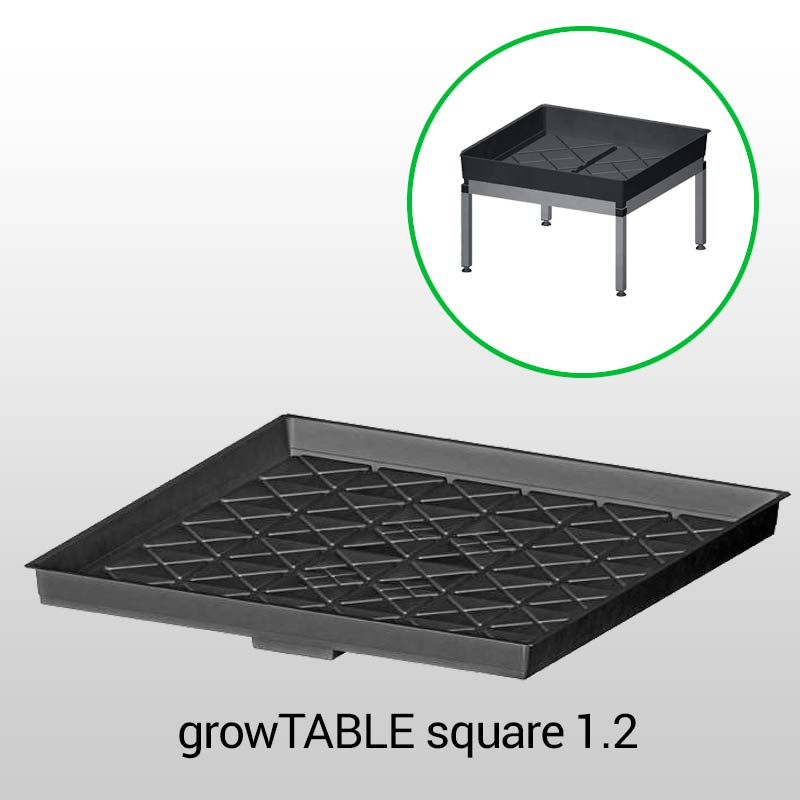

- growTABLE square 1.2 (118 x 118 x 9 cm + 4 cm deep drain basin): Grow tent footprint of at least 120 x 120 cm (Due to its size of over 1 meter, we are unable to ship the growTABLE square 1.2 via standard shipping. Freight forwarding costs of €110 apply.)
Components
- All growTABLES have a flood table with diagonal drainage channels, high tub edge with wide support.
- OPTIONAL inlet and outlet fitting available as a connection option for the deeper drain basin
Advantages of the table
The in-house flood table growTABLE has a simple, square format in 4 different dimensions 0.6 / 0.8 / 1.0 / 1.2.
- Different formats suitable for almost every grow tent , indoor box and grow cabinet
- Optimum water outflow thanks to a functioning drainage system with diagonally arranged drainage channels
- High, stable tray edge with wide support
- Low-lying drain basin with the possibility of connections for water inlet and outlet
The flood table is available for retail sale as a closed tub without drain openings. The drain basin has 3 pre-worked punchings for the possibility of later connection. The customer can create the predefined openings themselves as required.
Water drainage
The drain ducts consist of screw connections with Ø 19 mm outlets at the ends. Drain hoses are pushed from below through which the water from the flood table flows back into the nutrient tank or is collected as waste water in a separate tank under the rack.
Above the flood table, in the openings of the screw connections, plug-in pipes are inserted as a drain and safety overflow .
Water inlet
The inlet connector ensures that LD-PE pipes Ø 16 mm are tightly routed through the flood table.
Flood table and substructure
The growTABLE flood tables were coordinated with the respective growRACK of the same format series (60 x 60 cm / 80 x 80 cm / 100 x 100 cm / 120 x 120 cm).
The flood tables rest perfectly on the support systems without slipping to the side . The deeper drain basin on the growTABLE does not sit on the substructure. Connections for inlet and outlet are always freely accessible from below.
Table in the grow tent
In order for the flood tables to fit perfectly into the corners of the grow tents, all four corners of the growTABLE have been provided with recesses that can accommodate the tent poles.
