LED Driver Remote Use 5m Extension Cable (x2)

50,90  (42,77  excl. VAT) plus shipping

Quantity

Guaranteed Safe Checkout

Art.-Nr.: LUMM016 Category:

Description

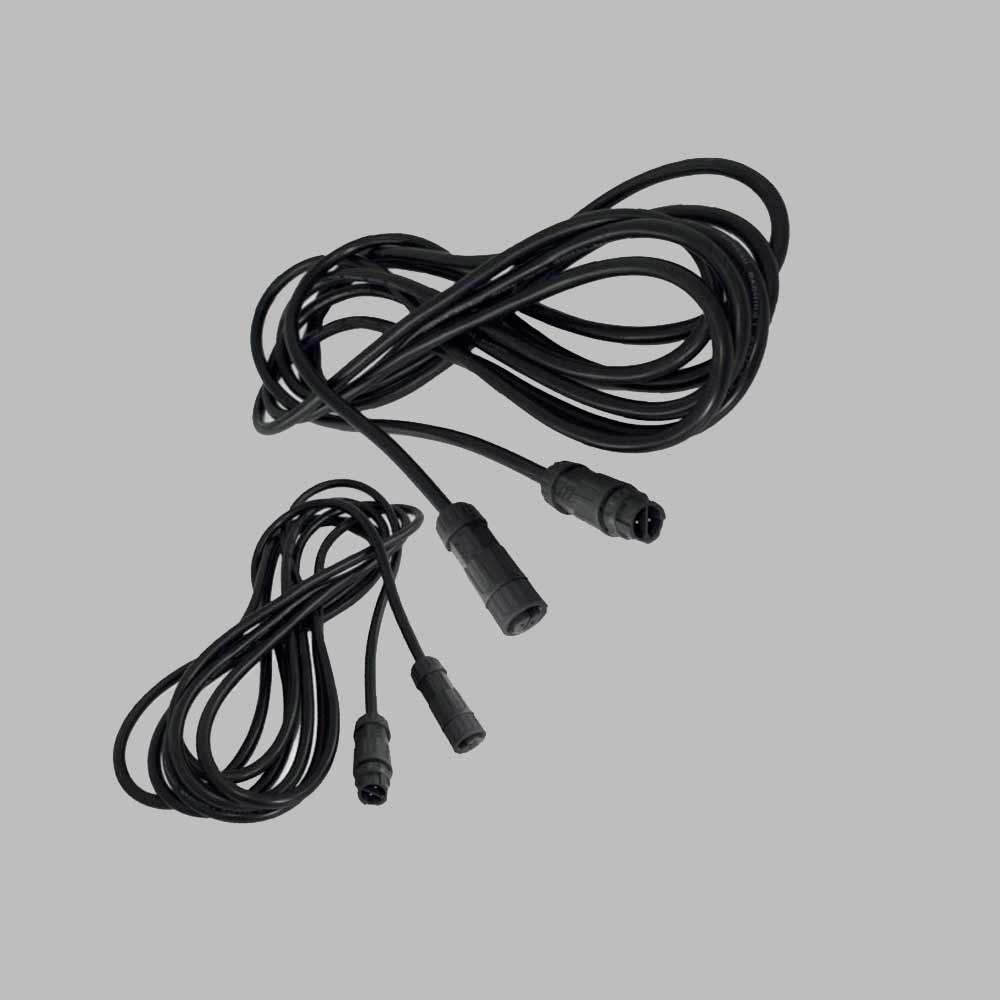

These two 5m long Extension Cables are designed to connect the Lumatek driver and LED fixture, in case the driver is used remote and away of the fixture.
Allowing a stable and precise connection without any interference these product is composed by 2 elements:



5m Extension Power Cable for LED driver:
M19-2 Self-locking male and female injection molding with 5m extension cable
Wire Gauge: UL SJTW 2x16AWG 300V 105℃

Technical specifications:

  • Withstand voltage between any two poles is 500 VAC, 2mA, test time 3S, no breakdown or leakage current occurs
  • The withstand voltage between outer cover and electrode is 500 VAC, 2mA, test time is 3S, no breakdown or leakage current occurs
  • Insulation Resistance:100MΩ@100V
  • Temperature Resistance:105℃
  • Working temperature: -20℃-105℃
  • Storage temperature: -25℃-105℃
  • IP65
  • Comply RoHS

5m Extension Dimming Cable for LED driver:
M12-3 Self-locking male and female injection molding with 5m extension cable
Wire Gauge: UL 21996 3×22AWG 300V 105℃ VW-1

Technical specifications:

  • Withstand voltage between any two poles is 500 VAC, 1mA, test time 3S, no breakdown or leakage current occurs
  • The withstand voltage between outer cover and electrode is 500 VAC, 1mA, test time is 3S, no breakdown or leakage current occurs
  • Insulation Resistance:100MΩ@100V
  • Temperature Resistance:105℃
  • Working temperature: -20℃-105℃
  • Storage temperature: -25℃-105℃
  • Comply RoHS

Additional information

Weight 0,4 kg
